Product Introduction
Diesel Portable Piston Air Compressor Mobile for Jack Hammer / Mining
1.Simple structure,light weight,easy to move .
2.Easy operating and maintenance.
3.High quality air delivery.
4.Superior technology,Low cost.
5.Valve plate and spring strip:made of special steel from Sweden and after special treatment.
6.Piston ring:special design;integral casting;excellent flexibility;lowest lubricating oil consumption
7.Cylinder:made of boron cast iron;wear resistant;special suitable for dusty condition
8.Cylinder cover:extrusion process adopted;streamlined external appearance;good heat emission performance.
9.High efficiency and low consumption.
10.Stable and smooth running with anti-vibration frame.
11.Professional design and Special manufacturing.
12.Energy saving.
Technical Specification
Model | Motor power | Cylinder qty*mm | Rotation speed r/min | F A D m³/min | Working pressure Mpa(kg/cm³) | Dimension L*W*H mm | Weight KGS |
W-1.8/5 | S1100*11KW | 3*φ100 | 1200 | 1.8 | 0.5(5) | 1500*600*950 | 300 |
W-2.8/5 | S1100*15KW | 3*φ115 | 1120 | 2.6 | 0.5(5) | 1670*820*1150 | 450 |
W-3.0/5 | S1115*18.5KW | 3*φ120 | 1070 | 3 | 0.5(5) | 1880*870*1230 | 460 |
W-3.2/7 | S1125*18.5KW | 3*φ125 | 800 | 3.7 | 0.7(7) | 1910*800*1620 | |
W-3.5/5 | S1125*18.5KW | 3*φ125 | 1170 | 3.5 | 0.5(5) | 1880*870*1240 | 460 |
SF4.0/5 | S1125*18.5KW | 4*φ120 | 1070 | 4.0 | 0.5(5) | 1960*860*1300 | 655 |
2V-3.5/5 | S1125*18.5KW | 4*φ115 | 980 | 3.5 | 0.5(5) | 1800*950*1300 | 650 |
2V-4.0/5 | S1125*18.5KW | 4*φ120 | 980 | 4.0 | 0.5(5) | 1800*950*1300 | 750 |
Product details

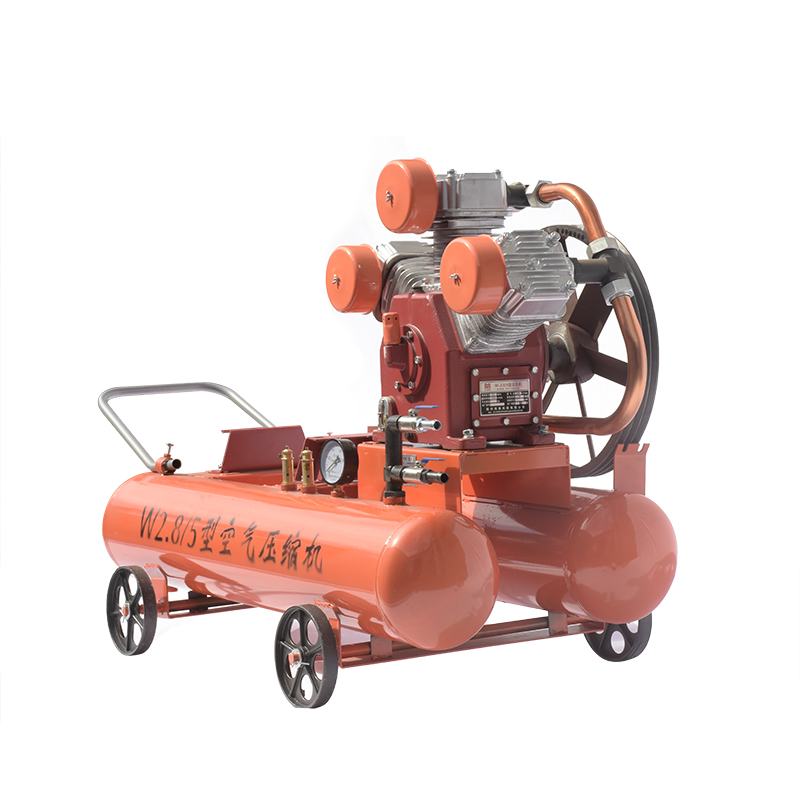

If you're seeking a dependable compressed air source catering to mining or jack hammer applications – look no further than our 15KW Mining Diesel Piston Air Compressor, model W2.8 5! Boasting an effortless yet lightweight design facilitating mobility and operation; however don't be fooled by its simplicity as it delivers high quality air delivery along with premium technology while maintaining reasonable costs. The distinguishing feature of this piston air compressor is its unparalleled focus on detail in both material and design intricacies.
The valve plate and spring strip consist of specially treated Swedish steel – ensuring durability the piston ring boasts a unique configuration that maximizes flexibility and minimizes lubricating oil consumption while the cylinders boron cast iron composition guarantees extra wear resistance. These aspects combine into a trustworthy compressed air source effortlessly powering your mining equipment or jack hammer with minimal maintenance requirements – whether you need it as backup equipment at your facility or on a remote job site this diesel portable piston air compressor is an impeccable choice.
Product Introduction
Diesel Portable Piston Air Compressor Mobile for Jack Hammer / Mining
1.Simple structure,light weight,easy to move .
2.Easy operating and maintenance.
3.High quality air delivery.
4.Superior technology,Low cost.
5.Valve plate and spring strip:made of special steel from Sweden and after special treatment.
6.Piston ring:special design;integral casting;excellent flexibility;lowest lubricating oil consumption
7.Cylinder:made of boron cast iron;wear resistant;special suitable for dusty condition
8.Cylinder cover:extrusion process adopted;streamlined external appearance;good heat emission performance.
9.High efficiency and low consumption.
10.Stable and smooth running with anti-vibration frame.
11.Professional design and Special manufacturing.
12.Energy saving.
Technical Specification
Model | Motor power | Cylinder qty*mm | Rotation speed r/min | F A D m³/min | Working pressure Mpa(kg/cm³) | Dimension L*W*H mm | Weight KGS |
W-1.8/5 | S1100*11KW | 3*φ100 | 1200 | 1.8 | 0.5(5) | 1500*600*950 | 300 |
W-2.8/5 | S1100*15KW | 3*φ115 | 1120 | 2.6 | 0.5(5) | 1670*820*1150 | 450 |
W-3.0/5 | S1115*18.5KW | 3*φ120 | 1070 | 3 | 0.5(5) | 1880*870*1230 | 460 |
W-3.2/7 | S1125*18.5KW | 3*φ125 | 800 | 3.7 | 0.7(7) | 1910*800*1620 | |
W-3.5/5 | S1125*18.5KW | 3*φ125 | 1170 | 3.5 | 0.5(5) | 1880*870*1240 | 460 |
SF4.0/5 | S1125*18.5KW | 4*φ120 | 1070 | 4.0 | 0.5(5) | 1960*860*1300 | 655 |
2V-3.5/5 | S1125*18.5KW | 4*φ115 | 980 | 3.5 | 0.5(5) | 1800*950*1300 | 650 |
2V-4.0/5 | S1125*18.5KW | 4*φ120 | 980 | 4.0 | 0.5(5) | 1800*950*1300 | 750 |
Product details
If you're seeking a dependable compressed air source catering to mining or jack hammer applications – look no further than our 15KW Mining Diesel Piston Air Compressor, model W2.8 5! Boasting an effortless yet lightweight design facilitating mobility and operation; however don't be fooled by its simplicity as it delivers high quality air delivery along with premium technology while maintaining reasonable costs. The distinguishing feature of this piston air compressor is its unparalleled focus on detail in both material and design intricacies.
The valve plate and spring strip consist of specially treated Swedish steel – ensuring durability the piston ring boasts a unique configuration that maximizes flexibility and minimizes lubricating oil consumption while the cylinders boron cast iron composition guarantees extra wear resistance. These aspects combine into a trustworthy compressed air source effortlessly powering your mining equipment or jack hammer with minimal maintenance requirements – whether you need it as backup equipment at your facility or on a remote job site this diesel portable piston air compressor is an impeccable choice.
