Product Introduction:

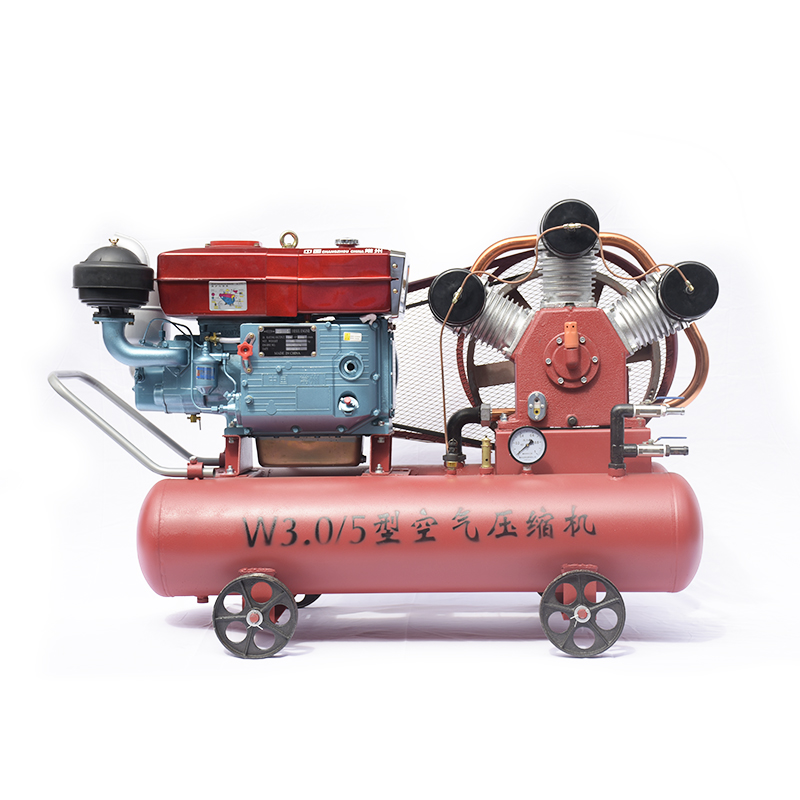

Diesel Portable Piston Air Compressor Mobile for Jack Hammer / Mining
1.Simple structure,light weight,easy to move .
2.Easy operating and maintenance.
3.High quality air delivery.
4.Superior technology,Low cost .
5.Valve plate and spring strip:made of special steel from Sweden and after special treatment.
6.Piston ring:special design;integral casting;excellent flexibility;lowest lubricating oil consumption.
7.Cylinder:made of boron cast iron;wear resistant;special suitable for dusty condition.
8.Cylinder cover:extrusion process adopted;streamlined external appearance;good heat emission performance.
9.High efficiency and low consumption.
10.Stable and smooth running with anti-vibration frame.
11.Professional design and Special manufacturing.
12.Energy saving.
Technical Specification
Motor power | Cylinder qty*mm | Rotation speed r/min | F A D m³/min | Working pressure Mpa(kg/cm³) | Dimension L*W*H mm | Weight KGS | |
W-1.8/5 | S1100*11KW | 3*φ100 | 1200 | 1.8 | 0.5(5)) | 1500*600*950 | 300 |
W-2.8/5 | S1100*15KW | 3*φ115 | 1120 | 2.6 | 0.5(5) | 1670*820*1150 | 450 |
W-3.0/5 | S1115*18.5KW | 3*φ120 | 1070 | 3 | 0.5(5) | 1880*870*1230 | 460 |
W-3.2/7 | S1125*18.5KW | 3*φ125 | 800 | 3.7 | 0.7(7) | 1910*800*1620 | |
W-3.5/5 | S1125*18.5KW | 3*φ125 | 1170 | 3.5 | 0.5(5) | 1880*870*1240 | 460 |
SF4.0/5 | S1125*18.5KW | 4*φ120 | 1070 | 4.0 | 0.5(5) | 1960*860*1300 | 655 |
2V-3.5/5 | S1125*18.5KW | 4*φ115 | 980 | 3.5 | 0.5(5) | 1800*950*1300 | 650 |
2V-4.0/5 | S1125*18.5KW | 4*φ120 | 980 | 4.0 | 0.5(5) | 1800*950*1300 | 750 |
Product details
Discover the power and convenience of the 15KW Mining Diesel Piston Air Compressor W3.0 5 perfect for your mining or construction work needs! Its lightweight design contributes significantly to ease of use on site while delivering high quality air that ensures efficient tool performance every time.
The W3.0 5 stands out as an excellent investment in comparison to other compressors because it boasts advanced technology features at a low cost without compromising on quality or results.
One notable feature is its valve plate and spring strip made from specially treated Swedish steel providing extra durability due since these parts are subject to high stress loads during operation; combined with a piston ring designed for maximum flexibility with minimal lubricating oil consumption sets this compressor apart from other options in the market. Maintaining this machine is easy thanks to its intuitive design which provides quick access for regular upkeep or repairs when needed.
The W3.0 5 compressor offers a highly desirable combination of simplicity, efficiency, and affordability. By investing in this exceptional product customers can enjoy its many benefits firsthand.
Product Introduction:
Diesel Portable Piston Air Compressor Mobile for Jack Hammer / Mining
1.Simple structure,light weight,easy to move .
2.Easy operating and maintenance.
3.High quality air delivery.
4.Superior technology,Low cost .
5.Valve plate and spring strip:made of special steel from Sweden and after special treatment.
6.Piston ring:special design;integral casting;excellent flexibility;lowest lubricating oil consumption.
7.Cylinder:made of boron cast iron;wear resistant;special suitable for dusty condition.
8.Cylinder cover:extrusion process adopted;streamlined external appearance;good heat emission performance.
9.High efficiency and low consumption.
10.Stable and smooth running with anti-vibration frame.
11.Professional design and Special manufacturing.
12.Energy saving.
Technical Specification
Motor power | Cylinder qty*mm | Rotation speed r/min | F A D m³/min | Working pressure Mpa(kg/cm³) | Dimension L*W*H mm | Weight KGS | |
W-1.8/5 | S1100*11KW | 3*φ100 | 1200 | 1.8 | 0.5(5)) | 1500*600*950 | 300 |
W-2.8/5 | S1100*15KW | 3*φ115 | 1120 | 2.6 | 0.5(5) | 1670*820*1150 | 450 |
W-3.0/5 | S1115*18.5KW | 3*φ120 | 1070 | 3 | 0.5(5) | 1880*870*1230 | 460 |
W-3.2/7 | S1125*18.5KW | 3*φ125 | 800 | 3.7 | 0.7(7) | 1910*800*1620 | |
W-3.5/5 | S1125*18.5KW | 3*φ125 | 1170 | 3.5 | 0.5(5) | 1880*870*1240 | 460 |
SF4.0/5 | S1125*18.5KW | 4*φ120 | 1070 | 4.0 | 0.5(5) | 1960*860*1300 | 655 |
2V-3.5/5 | S1125*18.5KW | 4*φ115 | 980 | 3.5 | 0.5(5) | 1800*950*1300 | 650 |
2V-4.0/5 | S1125*18.5KW | 4*φ120 | 980 | 4.0 | 0.5(5) | 1800*950*1300 | 750 |
Product details
Discover the power and convenience of the 15KW Mining Diesel Piston Air Compressor W3.0 5 perfect for your mining or construction work needs! Its lightweight design contributes significantly to ease of use on site while delivering high quality air that ensures efficient tool performance every time.
The W3.0 5 stands out as an excellent investment in comparison to other compressors because it boasts advanced technology features at a low cost without compromising on quality or results.
One notable feature is its valve plate and spring strip made from specially treated Swedish steel providing extra durability due since these parts are subject to high stress loads during operation; combined with a piston ring designed for maximum flexibility with minimal lubricating oil consumption sets this compressor apart from other options in the market. Maintaining this machine is easy thanks to its intuitive design which provides quick access for regular upkeep or repairs when needed.
The W3.0 5 compressor offers a highly desirable combination of simplicity, efficiency, and affordability. By investing in this exceptional product customers can enjoy its many benefits firsthand.
