W3.0-5
Shenglida
Advantages
1. Small in size,light in weight, easy to move.
2. Top material and superior technology.
3. Simple structure, high efficiency, good performance, and low price.
4. Adopt the most popular design, reliable and stable, and easy to maintenance.
W and 2V sereies air compressor.
More stability and reliability.
Excellent air supply ability.
Good sealing performance.
Powerful fan cooling system.
Specially designed for heavy-duty.
Professional design by computer.
Low-speed design low-noise running, long lifespan.
Features
1. Special design is made in heat emission and airflow.
2. The piston ring imported from Japan is durable and sealable.
3. Special oil separation construction, so no oil vents from the breather valve.
4.Crankshaft undergoes high-frequency hardening, which enables it especially abrasion-proof.
5. Strongly power-driven and big air end with design, more suitable for continuous operation.
Technical Specification
Model | Motor power | Cylinder qty*mm | Rotation speed r/min | F A D m³/min | Working pressure Mpa(kg/cm³) | Dimension L*W*H mm | Weight KGS |
W-1.8/5 | S1100*11KW | 3*φ100 | 1200 | 1.8 | 0.5（5）） | 1500*600*950 | 300 |
W-2.8/5 | S1100*15KW | 3*φ115 | 1120 | 2.6 | 0.5（5） | 1670*820*1150 | 450 |
W-3.0/5 | S1115*18.5KW | 3*φ120 | 1070 | 3 | 0.5（5） | 1880*870*1230 | 460 |
W-3.2/7 | S1125*18.5KW | 3*φ125 | 800 | 3.7 | 0.7(7) | 1910*800*1620 | |
W-3.5/5 | S1125*18.5KW | 3*φ125 | 1170 | 3.5 | 0.5（5） | 1880*870*1240 | 460 |
SF4.0/5 | S1125*18.5KW | 4*φ120 | 1070 | 4.0 | 0.5（5） | 1960*860*1300 | 655 |
2V-3.5/5 | S1125*18.5KW | 4*φ115 | 980 | 3.5 | 0.5（5） | 1800*950*1300 | 650 |
2V-4.0/5 | S1125*18.5KW | 4*φ120 | 980 | 4.0 | 0.5（5） | 1800*950*1300 | 750 |
Product details

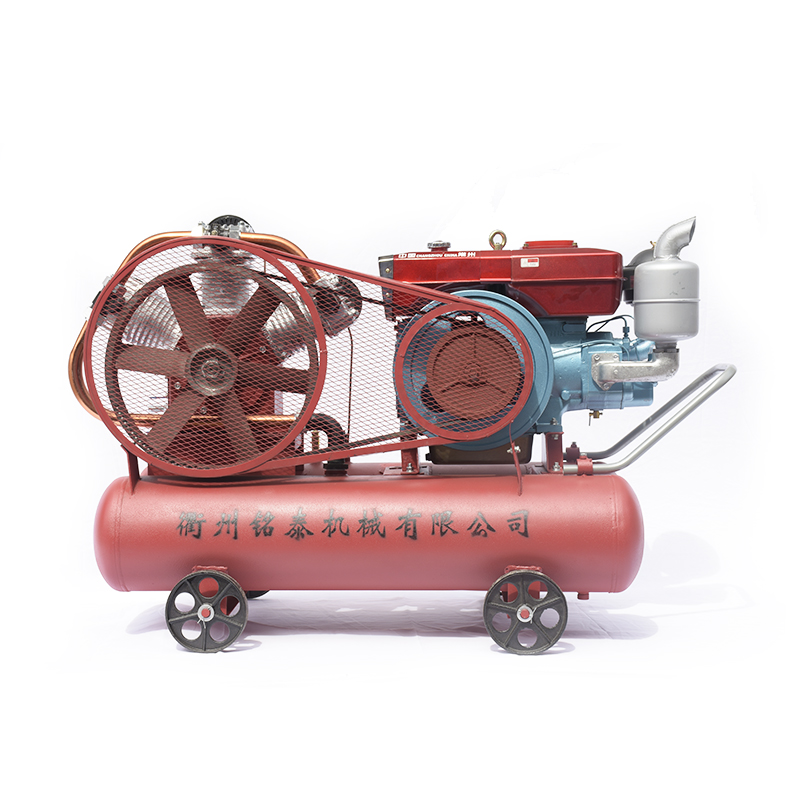

Say hello to the innovative Mining Diesel Piston Air Compressor W3.0 5! This powerful machine is designed to deliver consistent performance without breaking the bank. Its built using top of the line materials and advanced technology that maximize efficiency while minimizing complexity - a perfect combination for businesses of any size looking for reliable compressed air solutions.
One standout feature is its compact and lightweight design which makes it easy to maneuver even in tight spaces or across different job sites. From mining companies to construction sites this compressor can integrate seamlessly into a variety of operations while delivering unmatched results thanks to its 18.5KW diesel engine and piston design that runs quietly without compromising on power. When it comes to compressors that prioritize reliability and stability the W3.0 5 leads the pack with its unbeatable features.
Its designed to function seamlessly even in challenging environments thanks to its widespread popularity in the market. As such you can rest assured that your operations will keep running smoothly without interruptions from unexpected downtime caused by unanticipated breakdowns. To add icing on top of the cake - this compressor has an easy to maintain configuration that suits novices with minimal mechanical expertise perfectly! This bonus feature ensures reduced maintenance costs as less time goes into fixing any malfunctions thus allowing ample focus on other critical aspects of your organization.
With all these benefits in mind - investing in this cost effective machine makes perfect sense for businesses requiring compressed air! Besides its affordability factor - this brilliant invention boasts top quality material usage coupled with superior technology resulting in exceptional performance levels beyond imagination!
