SF4.0-5
Shenglida
Advantages
1. Small in size,light in weight, easy to move
2. Top material and superior technology
3. Simple structure, high efficiency, good performance, and low price
4. Adopt the most popular design, reliable and stable, and easy to maintenance
W and 2V sereies air compressor
More stability and reliability
Excellent air supply ability
Good sealing performance
Powerful fan cooling system
Specially designed for heavy-duty
Professional design by computer
Low-speed design low-noise running, long lifespan.
Features
1. Special design is made in heat emission and airflow.
2. The piston ring imported from Japan is durable and sealable.
3. Special oil separation construction, so no oil vents from the breather valve.
4.Crankshaft undergoes high-frequency hardening, which enables it especially abrasion-proof.
5. Strongly power-driven and big air end with design, more suitable for continuous operation.
Technical Specification
Model | Motor power | Cylinder qty*mm | Rotation speed r/min | F A D m³/min | Working pressure Mpa(kg/cm³) | Dimension L*W*H mm | Weight KGS |
W-1.8/5 | S1100*11KW | 3*φ100 | 1200 | 1.8 | 0.5（5）） | 1500*600*950 | 300 |
W-2.8/5 | S1100*15KW | 3*φ115 | 1120 | 2.6 | 0.5（5） | 1670*820*1150 | 450 |
W-3.0/5 | S1115*18.5KW | 3*φ120 | 1070 | 3 | 0.5（5） | 1880*870*1230 | 460 |
W-3.2/7 | S1125*18.5KW | 3*φ125 | 800 | 3.7 | 0.7(7) | 1910*800*1620 | |
W-3.5/5 | S1125*18.5KW | 3*φ125 | 1170 | 3.5 | 0.5（5） | 1880*870*1240 | 460 |

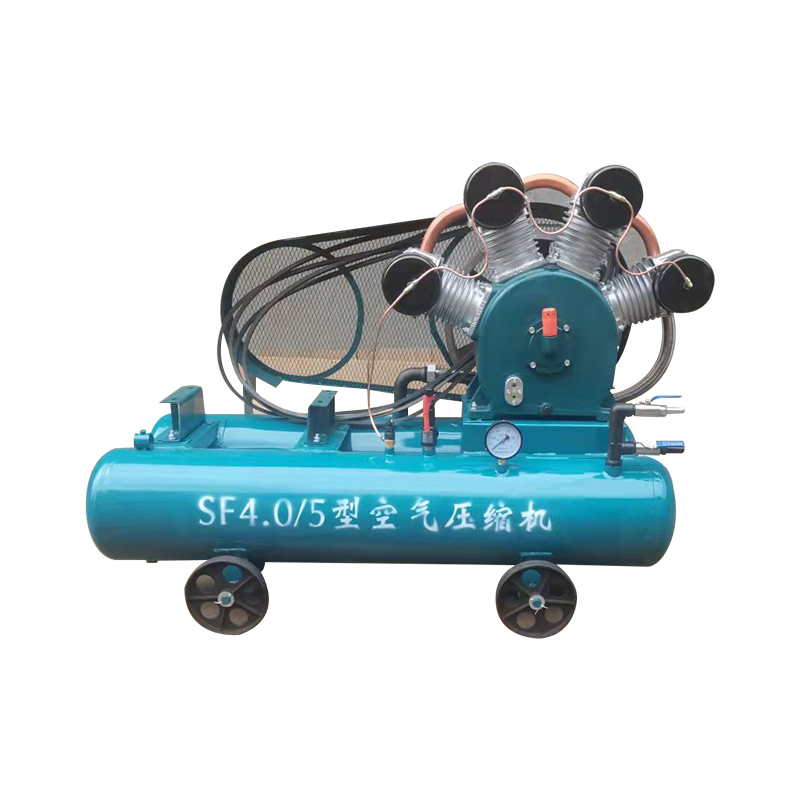

SF4.0/5 | S1125*18.5KW | 4*φ120 | 1070 | 4.0 | 0.5（5） | 1960*860*1300 | 655 |
2V-3.5/5 | S1125*18.5KW | 4*φ115 | 980 | 3.5 | 0.5（5） | 1800*950*1300 | 650 |
2V-4.0/5 | S1125*18.5KW | 4*φ120 | 980 | 4.0 | 0.5（5） | 1800*950*1300 | 750 |
For all your industrial needs that require powerful and dependable air compressors - look no further than the SF4.0 5 20KW Mining Diesel Piston Air Compressor! This sturdy machine boasts of being lightweight yet compact while utilizing only top quality materials coupled with cutting edge technology to deliver exceptional results in heavy duty applications. Its W and 2V series are equipped with a powerful fan cooling system that guarantees optimal air supply ability plus excellent sealing performance without compromising on silent operation levels - perfect for environments that demand minimal noise pollution! This compressors simple yet high performing structure offers remarkable output efficiency at an affordable price point - thus remaining a popular choice among mining, construction, manufacturing professionals who require reliable tools to accomplish their tasks seamlessly under challenging conditions.
Its unparalleled stability ensures it remains steady in any job site situation while delivering maximum productivity thanks to its latest computer software engineering. When it comes to tackling industrial level tasks you need equipment that can keep up with the demands without faltering or causing unnecessary disruptions - enter the 20KW Mining Diesel Piston Air Compressor SF4.0 5! Built to last using only premium materials this air compressor boasts excellent air supply ability and an impressively robust engine capable of handling virtually any job without breaking a sweat.
Its powerful fan cooling system ensures that overheating is never an issue whilst its specially designed low speed technology delivers whisper quiet yet energy efficient performance at all times - making it an ideal choice for any heavy duty task.
Advantages
1. Small in size,light in weight, easy to move
2. Top material and superior technology
3. Simple structure, high efficiency, good performance, and low price
4. Adopt the most popular design, reliable and stable, and easy to maintenance
W and 2V sereies air compressor
More stability and reliability
Excellent air supply ability
Good sealing performance
Powerful fan cooling system
Specially designed for heavy-duty
Professional design by computer
Low-speed design low-noise running, long lifespan.
Features
1. Special design is made in heat emission and airflow.
2. The piston ring imported from Japan is durable and sealable.
3. Special oil separation construction, so no oil vents from the breather valve.
4.Crankshaft undergoes high-frequency hardening, which enables it especially abrasion-proof.
5. Strongly power-driven and big air end with design, more suitable for continuous operation.
Technical Specification
Model | Motor power | Cylinder qty*mm | Rotation speed r/min | F A D m³/min | Working pressure Mpa(kg/cm³) | Dimension L*W*H mm | Weight KGS |
W-1.8/5 | S1100*11KW | 3*φ100 | 1200 | 1.8 | 0.5（5）） | 1500*600*950 | 300 |
W-2.8/5 | S1100*15KW | 3*φ115 | 1120 | 2.6 | 0.5（5） | 1670*820*1150 | 450 |
W-3.0/5 | S1115*18.5KW | 3*φ120 | 1070 | 3 | 0.5（5） | 1880*870*1230 | 460 |
W-3.2/7 | S1125*18.5KW | 3*φ125 | 800 | 3.7 | 0.7(7) | 1910*800*1620 | |
W-3.5/5 | S1125*18.5KW | 3*φ125 | 1170 | 3.5 | 0.5（5） | 1880*870*1240 | 460 |
SF4.0/5 | S1125*18.5KW | 4*φ120 | 1070 | 4.0 | 0.5（5） | 1960*860*1300 | 655 |
2V-3.5/5 | S1125*18.5KW | 4*φ115 | 980 | 3.5 | 0.5（5） | 1800*950*1300 | 650 |
2V-4.0/5 | S1125*18.5KW | 4*φ120 | 980 | 4.0 | 0.5（5） | 1800*950*1300 | 750 |
For all your industrial needs that require powerful and dependable air compressors - look no further than the SF4.0 5 20KW Mining Diesel Piston Air Compressor! This sturdy machine boasts of being lightweight yet compact while utilizing only top quality materials coupled with cutting edge technology to deliver exceptional results in heavy duty applications. Its W and 2V series are equipped with a powerful fan cooling system that guarantees optimal air supply ability plus excellent sealing performance without compromising on silent operation levels - perfect for environments that demand minimal noise pollution! This compressors simple yet high performing structure offers remarkable output efficiency at an affordable price point - thus remaining a popular choice among mining, construction, manufacturing professionals who require reliable tools to accomplish their tasks seamlessly under challenging conditions.
Its unparalleled stability ensures it remains steady in any job site situation while delivering maximum productivity thanks to its latest computer software engineering. When it comes to tackling industrial level tasks you need equipment that can keep up with the demands without faltering or causing unnecessary disruptions - enter the 20KW Mining Diesel Piston Air Compressor SF4.0 5! Built to last using only premium materials this air compressor boasts excellent air supply ability and an impressively robust engine capable of handling virtually any job without breaking a sweat.
Its powerful fan cooling system ensures that overheating is never an issue whilst its specially designed low speed technology delivers whisper quiet yet energy efficient performance at all times - making it an ideal choice for any heavy duty task.
