HGS
Shenglida
Product Introduction：
More powerful and more energy-saving new air compressor host
Two-stage compression, the latest patented screw rotor, higher efficiency;
Energy efficiency level is 10% higher than similar products, more energy-saving; heavy-duty high-strength design, high-quality SKF bearings, direct drive, quality assurance, stable and reliable; designed according to the maximum design pressure of 40bar, the best air compressor structure and reliability.
High-quality heavy-duty diesel engine
High-efficiency electronic injection high-pressure common rail fuel system;
It is equipped with heavy-duty diesel engines such as Cummins and Weichai; the intelligent control system accurately controls the fuel injection volume,
Achieve the best power output in the full operating range; stronger power, higher reliability, and better fuel economy;
Meet the national three emission requirements.
Intelligent control system
Intuitive display interface, multi-language intelligent controller, easy to use;
Real-time online display of operating parameters such as speed, air supply pressure, oil pressure and exhaust temperature, coolant temperature, fuel level, etc.;
With self-diagnostic failure, alarm and shutdown protection functions, to ensure safe operation when unattended;
Optional remote monitoring system and mobile phone APP function.
Efficient cooling system
Efficient and reliable system configuration to ensure that the whole machine is in the best operating state
Independent oil, gas, and liquid coolers, large-diameter high-efficiency fans, and smooth airflow channels;
Adapt to the extreme cold, hot and plateau climate.
Large-capacity heavy-duty air filtration system and oil-gas separation system
Cyclone type high-quality heavy-duty main air filter, double filter, filter out dust and other debris particles in the air, to ensure that the diesel engine and the air compressor host loses the least under harsh working conditions and extend the life of the machine;
The special high-efficiency oil and gas separation system adapted to the changing working conditions of drilling rigs, water well drilling, etc., to ensure that the air quality after oil and gas separation under various working conditions meets the requirements of 3PPM and prolong the life of the oil separation core.
High-quality and reliable air compressor coolant and lubrication system
The chemical composition and physical properties of the coolant are stable in low and high temperature environments, and will not coke or deteriorate. Multiple oil filter design and constant temperature control can ensure minimal loss under severe working conditions and extend the life of the machine.
Rich customization options
Optional dual-condition air compressor host and control system to meet the efficient construction of various operations;
Optional low-temperature starting system, fuel coolant heater to continuously increase the temperature of diesel engine coolant, lubricating oil and the whole machine, ensuring that the diesel engine starts in severe cold and plateau environment;
Optional after cooler to ensure that the exhaust temperature is not higher than the ambient temperature by 15°C;
Optional air pre-filter to ensure that diesel engines and air compressors are kept away from early wear and tear in high dust environment; optional remote monitoring system and mobile phone APP function, equipment management becomes easy and free.
Higher profit and easier maintenance
A variety of innovative designs can effectively reduce customer use costs and greatly improve work efficiency. Improve the rate of return on investment;
Silent enclosure and fully enclosed chassis are designed with shock absorption and noise reduction, smooth operation and lower noise;
The spacious full-open door panel and reasonable structure layout make it very simple and easy to maintain the air filter, oil filter, and oil separation core.
Technical parameters:
Model | Engine (kw) | Air Capacity (m3/min ) | Air Pressure (bar) | Weight |
HGS-30/25C | Cummins 294 | 30 | 25 | 5300 |
HGS-36/30C | Yuchai 410 | 36 | 30 | 5900 |
HGS-24/22W | Cummins | 24 | 22 | 5400 |
Product details

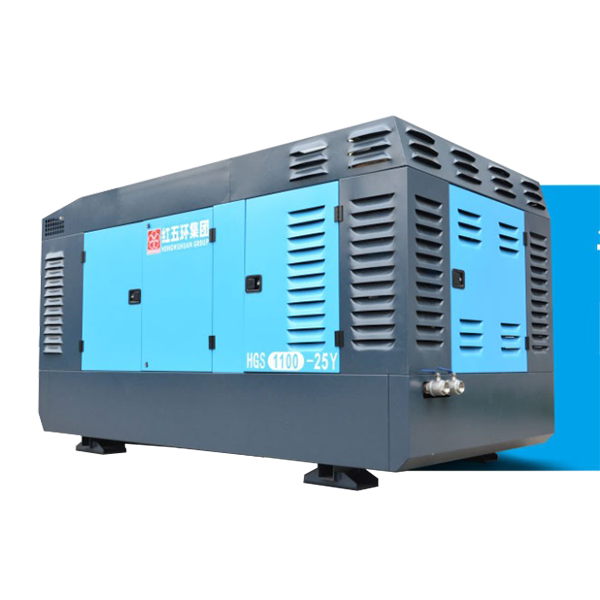

We are excited to introduce you to the innovative Deep Well Screw Air Compressor HGS Series! This game changing compressor is designed with state of the art patented screw rotor technology coupled with a two stage compression system that produces enhanced efficiency levels perfect for heavy duty applications. Delivering a pressure maximum of 40bar it offers unrivaled structural integrity and reliability compared to similar products on the market today.
With unparalleled energy efficient capabilities - achieving 10% more when compared with other compressors - this compressor comes packed with quality features such as high quality SKF bearings and an efficient direct drive system ensuring stability all through your operations. Its sturdy high strength construct guarantees longevity even under intense working conditions.
Specifically designed for use in various industries including manufacturing and mining among others the HGS Series is a trusted, reliable and energy efficient solution for all your industrial needs. Featuring cutting edge screw rotor design technology the Deep Well Screw Air Compressor HGS Series delivers excellent compression performance for maximum efficiency.
The two stage compression system optimizes energy consumption while significantly elevating productivity levels in your business operations. Crafted with user convenience as a top priority The HGS Series incorporates an easy to use interface and controls ensuring seamless operation even for those without mechanical expertise.
Its direct drive motor surpasses expectations by delivering superior power while being energy efficient and requiring lesser maintenance compared to belt drive variants - leading to greater durability over time. The HGS series operates at low decibels - guaranteeing a quieter workspace compared to traditional compressors- making it an attractive choice for industries seeking a serene working environment.
Its availability in various sizes highlights its versatility as a product - catering to different business requirements from compact shops to massive industrial setups. In conclusion Deep Well Screw Air Compressor HGS Series promises enhanced efficiency and productivity across different office settings.
Investing in the HGS Series is a smart choice for anyone seeking a reliable energy efficient solution for industrial needs. With its superior design and proven track record of dependability this series is the ideal choice to optimize functionality while minimizing energy expenditure.
Don't let high electricity bills drain your resources - make the switch to HGS today.
Product Introduction：
More powerful and more energy-saving new air compressor host
Two-stage compression, the latest patented screw rotor, higher efficiency;
Energy efficiency level is 10% higher than similar products, more energy-saving; heavy-duty high-strength design, high-quality SKF bearings, direct drive, quality assurance, stable and reliable; designed according to the maximum design pressure of 40bar, the best air compressor structure and reliability.
High-quality heavy-duty diesel engine
High-efficiency electronic injection high-pressure common rail fuel system;
It is equipped with heavy-duty diesel engines such as Cummins and Weichai; the intelligent control system accurately controls the fuel injection volume,
Achieve the best power output in the full operating range; stronger power, higher reliability, and better fuel economy;
Meet the national three emission requirements.
Intelligent control system
Intuitive display interface, multi-language intelligent controller, easy to use;
Real-time online display of operating parameters such as speed, air supply pressure, oil pressure and exhaust temperature, coolant temperature, fuel level, etc.;
With self-diagnostic failure, alarm and shutdown protection functions, to ensure safe operation when unattended;
Optional remote monitoring system and mobile phone APP function.
Efficient cooling system
Efficient and reliable system configuration to ensure that the whole machine is in the best operating state
Independent oil, gas, and liquid coolers, large-diameter high-efficiency fans, and smooth airflow channels;
Adapt to the extreme cold, hot and plateau climate.
Large-capacity heavy-duty air filtration system and oil-gas separation system
Cyclone type high-quality heavy-duty main air filter, double filter, filter out dust and other debris particles in the air, to ensure that the diesel engine and the air compressor host loses the least under harsh working conditions and extend the life of the machine;
The special high-efficiency oil and gas separation system adapted to the changing working conditions of drilling rigs, water well drilling, etc., to ensure that the air quality after oil and gas separation under various working conditions meets the requirements of 3PPM and prolong the life of the oil separation core.
High-quality and reliable air compressor coolant and lubrication system
The chemical composition and physical properties of the coolant are stable in low and high temperature environments, and will not coke or deteriorate. Multiple oil filter design and constant temperature control can ensure minimal loss under severe working conditions and extend the life of the machine.
Rich customization options
Optional dual-condition air compressor host and control system to meet the efficient construction of various operations;
Optional low-temperature starting system, fuel coolant heater to continuously increase the temperature of diesel engine coolant, lubricating oil and the whole machine, ensuring that the diesel engine starts in severe cold and plateau environment;
Optional after cooler to ensure that the exhaust temperature is not higher than the ambient temperature by 15°C;
Optional air pre-filter to ensure that diesel engines and air compressors are kept away from early wear and tear in high dust environment; optional remote monitoring system and mobile phone APP function, equipment management becomes easy and free.
Higher profit and easier maintenance
A variety of innovative designs can effectively reduce customer use costs and greatly improve work efficiency. Improve the rate of return on investment;
Silent enclosure and fully enclosed chassis are designed with shock absorption and noise reduction, smooth operation and lower noise;
The spacious full-open door panel and reasonable structure layout make it very simple and easy to maintain the air filter, oil filter, and oil separation core.
Technical parameters:
Model | Engine (kw) | Air Capacity (m3/min ) | Air Pressure (bar) | Weight |
HGS-30/25C | Cummins 294 | 30 | 25 | 5300 |
HGS-36/30C | Yuchai 410 | 36 | 30 | 5900 |
HGS-24/22W | Cummins | 24 | 22 | 5400 |
Product details
We are excited to introduce you to the innovative Deep Well Screw Air Compressor HGS Series! This game changing compressor is designed with state of the art patented screw rotor technology coupled with a two stage compression system that produces enhanced efficiency levels perfect for heavy duty applications. Delivering a pressure maximum of 40bar it offers unrivaled structural integrity and reliability compared to similar products on the market today.
With unparalleled energy efficient capabilities - achieving 10% more when compared with other compressors - this compressor comes packed with quality features such as high quality SKF bearings and an efficient direct drive system ensuring stability all through your operations. Its sturdy high strength construct guarantees longevity even under intense working conditions.
Specifically designed for use in various industries including manufacturing and mining among others the HGS Series is a trusted, reliable and energy efficient solution for all your industrial needs. Featuring cutting edge screw rotor design technology the Deep Well Screw Air Compressor HGS Series delivers excellent compression performance for maximum efficiency.
The two stage compression system optimizes energy consumption while significantly elevating productivity levels in your business operations. Crafted with user convenience as a top priority The HGS Series incorporates an easy to use interface and controls ensuring seamless operation even for those without mechanical expertise.
Its direct drive motor surpasses expectations by delivering superior power while being energy efficient and requiring lesser maintenance compared to belt drive variants - leading to greater durability over time. The HGS series operates at low decibels - guaranteeing a quieter workspace compared to traditional compressors- making it an attractive choice for industries seeking a serene working environment.
Its availability in various sizes highlights its versatility as a product - catering to different business requirements from compact shops to massive industrial setups. In conclusion Deep Well Screw Air Compressor HGS Series promises enhanced efficiency and productivity across different office settings.
Investing in the HGS Series is a smart choice for anyone seeking a reliable energy efficient solution for industrial needs. With its superior design and proven track record of dependability this series is the ideal choice to optimize functionality while minimizing energy expenditure.
Don't let high electricity bills drain your resources - make the switch to HGS today.
