Product Briefing:

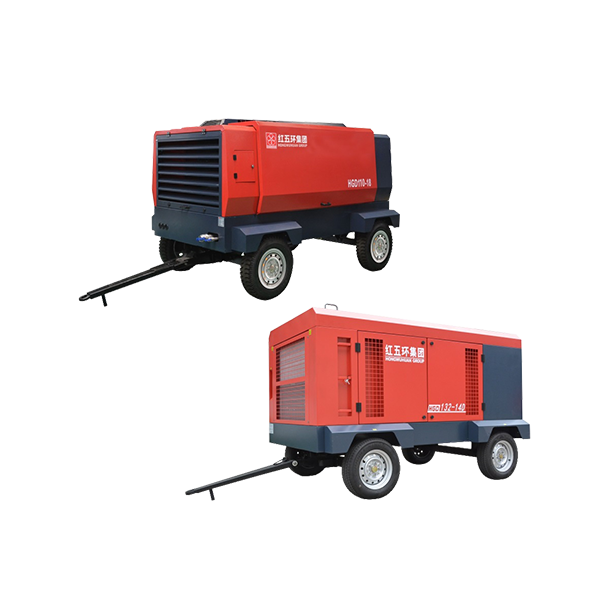

This series of screw air compressors is simpler and more convenient than diesel because of its electric drive mode: it has the advantages of mobile screw models and is more in line with the development trend of lighter and smaller screw compressors. The new electric shift series has major breakthroughs in system and configuration compared with traditional models, and it has truly achieved high efficiency, high stability, and low energy consumption.
Product Introduction
High Reliability
High-performance motor drive, equipped with SKF bearings, insulation class F, protection class 1P54, star-delta Y-△ start, safe and reliable.
Efficient and Economical
It adopts a large rotor and a direct-connected machine head, with balanced and reliable operation, high transmission efficiency and low energy consumption.
Comprehensive Monitoring
The operating status of the equipment can be fully monitored; the control panel in Chinese and English contrasts the operating status of the equipment at a glance, and is equipped with a very automatic shutdown function to ensure the safety of humans and machines.
Technical parameters:
Model | Engine(kw) | Air Capacity (m3/min) | Air Pressure (bar) | Weight (kg) |
HG75-8 | 75 | 12 | 8 | 2050 |
HG90-8 | 90 | 15.5 | 8 | 2600 |
HG90-14 | 90 | 12 | 14 | 2600 |
HG110-8 | 110 | 20 | 8 | 2800 |
HG110-18 | 110 | 11.5 | 18 | 2800 |
HG132-14 | 132 | 15 | 14 | 2900 |
HG132-18 | 132 | 14.5 | 18 | 4500 |
HG185-14D | 185 | 22 | 14 | 4500 |
HG185-18D | 185 | 22 | 18 | 4500 |
The HG Series of Electric Screw Air Compressors is an innovative selection designed to blend advanced technology with optimum efficiency and convenience when producing compressed air.
Unlike diesel models the HG series boasts superior user friendliness and operational ease thanks to its electric drive mode. Its also mobile screw models offer unrivaled versatility while allowing users to utilize the compressor while on the move seamlessly. Additionally this compression system perfectly suits an increasing light and small screw compressors' development trend anticipated in coming days.
One remarkable feature of this series is its remarkable breakthroughs in system configuration compared to traditional compressors resulting in enhanced efficiency, stability, and minimal energy consumption; attributes ideal for industries reliant on compressed air around the clock.
Another advantage lies within this ranges electric drive mode; producing considerably less noise pollution or vibrations which makes it perfect for indoor operations like hospitals or educational institutions.
Revolutionize your operations with the HG Series of Electric Screw Air Compressors - an unparalleled solution perfect for all your industrial, commercial or residential needs! It features exceptional technology customized for individual requirements such as the digital display control system providing accuracy while the intelligent control system offers real time data feedback. Designed with heavy duty materials and reinforced with safety protection devices this product guarantees longevity and durability regardless of the working environment. Theres no need to delay - experience the transformative effects of the HG Series firsthand today by reaching out to us!
