1. Convenient and easy to use, can work 24 hours unattended all day, no load automatic start, full load automatic stop.
2. Widely used in precision coating, electronic parts processing, micro processing and other industries of compressed air processing equipment.
3. Intelligent design. Perfect interface control system, cooling system, inlet filtration system.
4. Strong stability. For a long time in the working environment, the exhaust volume and air pressure are stable, no crash phenomenon, and the failure rate is low.
Applications:
The newly developed rotor tooth profile dedicated to the main engine of screw compressor is adopted to provide superior performance, solid axial and radial bearings for each model of machine head, so as to ensure longer service life. In key areas, triple shaft seal is used to eliminate leakage problems, and wear-resistant shaft sleeve with O-type seal ring is accurately ground, With high maintainability, each product has superior performance and efficiency, and produces large exhaust with small motor horsepower.
The oil cooler is designed with super large cooler and fan according to the actual working conditions in China, with better exhaust temperature, which is suitable for working in the harsh environment in the field.
The gas volume automatic control system automatically and steplessly adjusts the suction volume of the air compressor and the speed of the diesel engine according to the service pressure, so as to completely match the gas supply and gas consumption, So as to achieve better results with lower fuel consumption.
The brand power adopts Cummins, Yuchai and other brand diesel engines. Strong power, reliable operation, good fuel economy, exhaust emission and noise.
Multiple Air Filtration System. Effectively prevent the impact of harsh dust environment on the engine. The precision filter layer of the main air filter filters out the remaining dust to ensure that the machine is not worn. The safety filter element allows the machine to perform air filter maintenance without stopping the machine to ensure the safe operation of the machine.
Two-wheeled
Four-wheeled
Model | Air pressure(bar) | Air capacity(m³/min) | Engine model(kW) | Dimension(mm) | Weight(kg) |
KSCY-360/13 | 13 | 10 | Yuchai110 | 4000*1900*2300 | 2300 |
KSCY-425/10 | 10 | 12 | Yuchai110 | 4000*1900*2300 | 2300 |
KSCY-460/14.5 | 14.5 | 13 | Cummins132 | 4000*1900*2300 | 2600 |
KSCY-550/13 | 13 | Cummins132 | 3300*1600*2400 | 3000 | |
KSCY-550/13 | 13 | 15 | Yuchai176 | 3300*1600*2400 | 3000 |
KSCY-580/17 | 17 | 17 | Cummins 194 | 3900*1700*2400 | 3400 |
KSCY-680/14.5 | 14.5 | 19 | Cummins 194 | 3900*1700*2400 | 3400 |
Product details

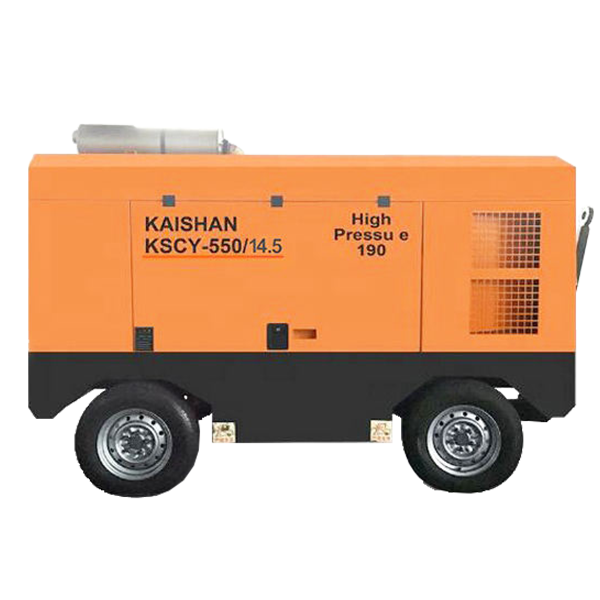

Say hello to the KSCY Series Portable Screw Air Compressor – the ultimate solution to satisfy your compressed air processing needs! Boasting an intelligent design, advanced control system and unmatched stability guarantees high performance in precision coating, electronic parts processing as well as in micro processing industries. Designed with convenience in mind using KSCY series will save your time as it can run 24/7 unattended with its no load automatic start and full load automatic stop benefits by ensuring a smooth and efficient operation without any intervention needed manually.
KSCY series portable screw compressors are used extensively across several industries thanks to their remarkable versatility. Whether you run operations requiring compressed air for precision coating or microprocessing purposes or other industries requiring a high volume of compressed air; The KCSY series screw compressor will come through for you every time! One standout feature worth highlighting about this compressor is how user friendly it is thanks to its intelligent design.
For optimal performance and durability of your compressor equipment while processing compressed air in diverse industrial settings like construction sites or manufacturing plants - look no further than the KSCY Series Portable Screw Air Compressor. With its perfect combination of interface control systems such as cooling systems and inlet filtration systems along with top-notch stability thanks to long working hours plus stable exhaust volume plus fixed air pressure- you can rest assured about this compressor's excellent functioning without worrying about crashing occurrences.
To put simply - the KSCY series is an all-around solution for your compressed air processing requirements! Its versatility coupled with intelligent design features makes it a valuable resource enabling you access everywhere at your convenience while ensuring unmatched performance over time.
1. Convenient and easy to use, can work 24 hours unattended all day, no load automatic start, full load automatic stop.
2. Widely used in precision coating, electronic parts processing, micro processing and other industries of compressed air processing equipment.
3. Intelligent design. Perfect interface control system, cooling system, inlet filtration system.
4. Strong stability. For a long time in the working environment, the exhaust volume and air pressure are stable, no crash phenomenon, and the failure rate is low.
Applications:
The newly developed rotor tooth profile dedicated to the main engine of screw compressor is adopted to provide superior performance, solid axial and radial bearings for each model of machine head, so as to ensure longer service life. In key areas, triple shaft seal is used to eliminate leakage problems, and wear-resistant shaft sleeve with O-type seal ring is accurately ground, With high maintainability, each product has superior performance and efficiency, and produces large exhaust with small motor horsepower.
The oil cooler is designed with super large cooler and fan according to the actual working conditions in China, with better exhaust temperature, which is suitable for working in the harsh environment in the field.
The gas volume automatic control system automatically and steplessly adjusts the suction volume of the air compressor and the speed of the diesel engine according to the service pressure, so as to completely match the gas supply and gas consumption, So as to achieve better results with lower fuel consumption.
The brand power adopts Cummins, Yuchai and other brand diesel engines. Strong power, reliable operation, good fuel economy, exhaust emission and noise.
Multiple Air Filtration System. Effectively prevent the impact of harsh dust environment on the engine. The precision filter layer of the main air filter filters out the remaining dust to ensure that the machine is not worn. The safety filter element allows the machine to perform air filter maintenance without stopping the machine to ensure the safe operation of the machine.
Two-wheeled
Four-wheeled
Model | Air pressure(bar) | Air capacity(m³/min) | Engine model(kW) | Dimension(mm) | Weight(kg) |
KSCY-360/13 | 13 | 10 | Yuchai110 | 4000*1900*2300 | 2300 |
KSCY-425/10 | 10 | 12 | Yuchai110 | 4000*1900*2300 | 2300 |
KSCY-460/14.5 | 14.5 | 13 | Cummins132 | 4000*1900*2300 | 2600 |
KSCY-550/13 | 13 | Cummins132 | 3300*1600*2400 | 3000 | |
KSCY-550/13 | 13 | 15 | Yuchai176 | 3300*1600*2400 | 3000 |
KSCY-580/17 | 17 | 17 | Cummins 194 | 3900*1700*2400 | 3400 |
KSCY-680/14.5 | 14.5 | 19 | Cummins 194 | 3900*1700*2400 | 3400 |
Product details
Say hello to the KSCY Series Portable Screw Air Compressor – the ultimate solution to satisfy your compressed air processing needs! Boasting an intelligent design, advanced control system and unmatched stability guarantees high performance in precision coating, electronic parts processing as well as in micro processing industries. Designed with convenience in mind using KSCY series will save your time as it can run 24/7 unattended with its no load automatic start and full load automatic stop benefits by ensuring a smooth and efficient operation without any intervention needed manually.
KSCY series portable screw compressors are used extensively across several industries thanks to their remarkable versatility. Whether you run operations requiring compressed air for precision coating or microprocessing purposes or other industries requiring a high volume of compressed air; The KCSY series screw compressor will come through for you every time! One standout feature worth highlighting about this compressor is how user friendly it is thanks to its intelligent design.
For optimal performance and durability of your compressor equipment while processing compressed air in diverse industrial settings like construction sites or manufacturing plants - look no further than the KSCY Series Portable Screw Air Compressor. With its perfect combination of interface control systems such as cooling systems and inlet filtration systems along with top-notch stability thanks to long working hours plus stable exhaust volume plus fixed air pressure- you can rest assured about this compressor's excellent functioning without worrying about crashing occurrences.
To put simply - the KSCY series is an all-around solution for your compressed air processing requirements! Its versatility coupled with intelligent design features makes it a valuable resource enabling you access everywhere at your convenience while ensuring unmatched performance over time.
